Chinese Lunar Orbiter Chang'e-2

Page: Sats.Change2 - Last Modified : Sun, 19 Jun 11
S-band downlink parameters

Frequency:2210.8 MHz
Modulation:PM

Downlink modulation:+/-65536Hz sidebands
 1024Bd BPSK
Coding:Viterbi 1/2
Frame:1024bits (after Viterbi)
Syncword:44 44 24 C4 50 hex

Uplink echo on downlink:+/-8040Hz sidebands
 125Bd BPSK

More info will be added soon...

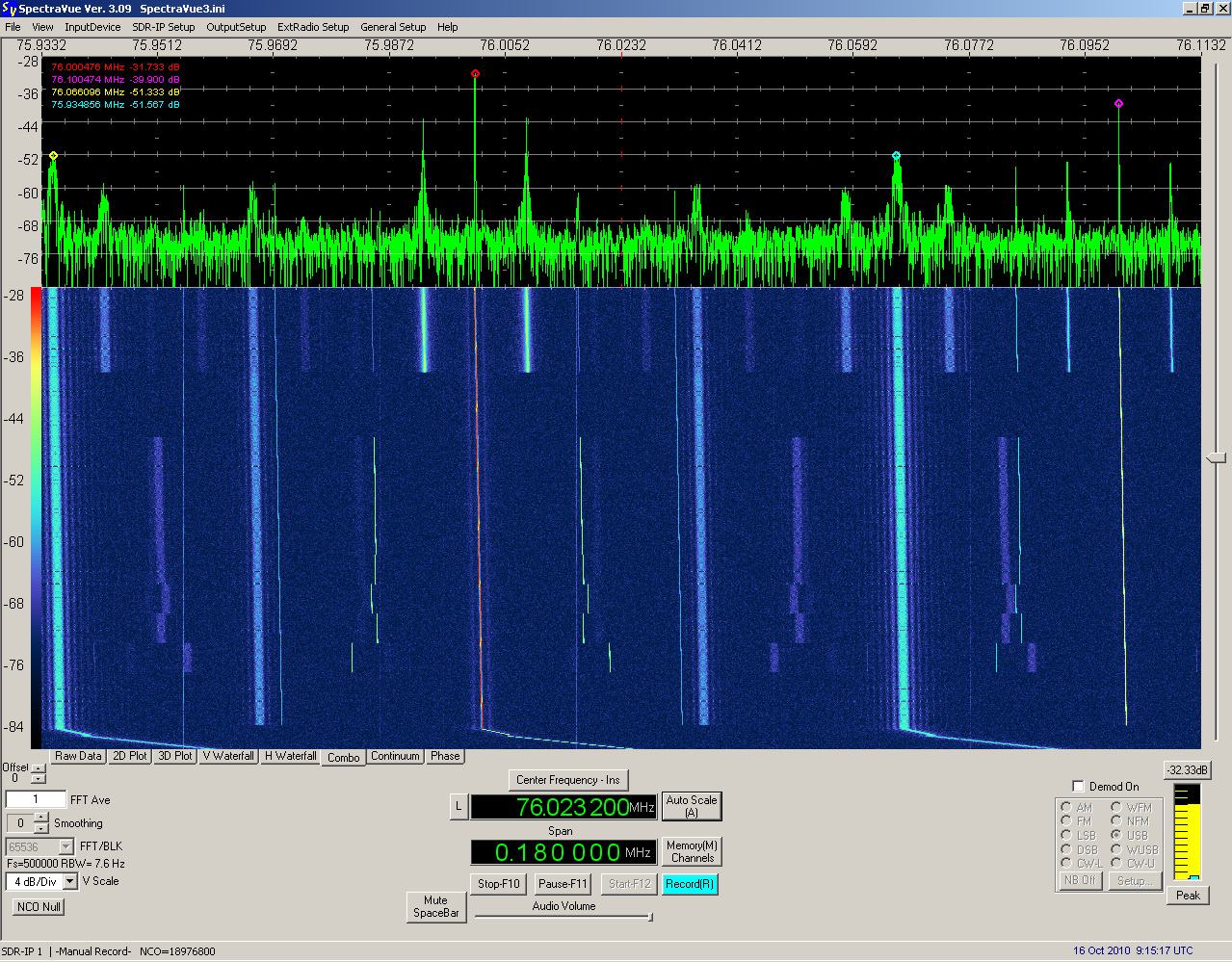

S-band downlink spectrum screenshots (using 10m dish):

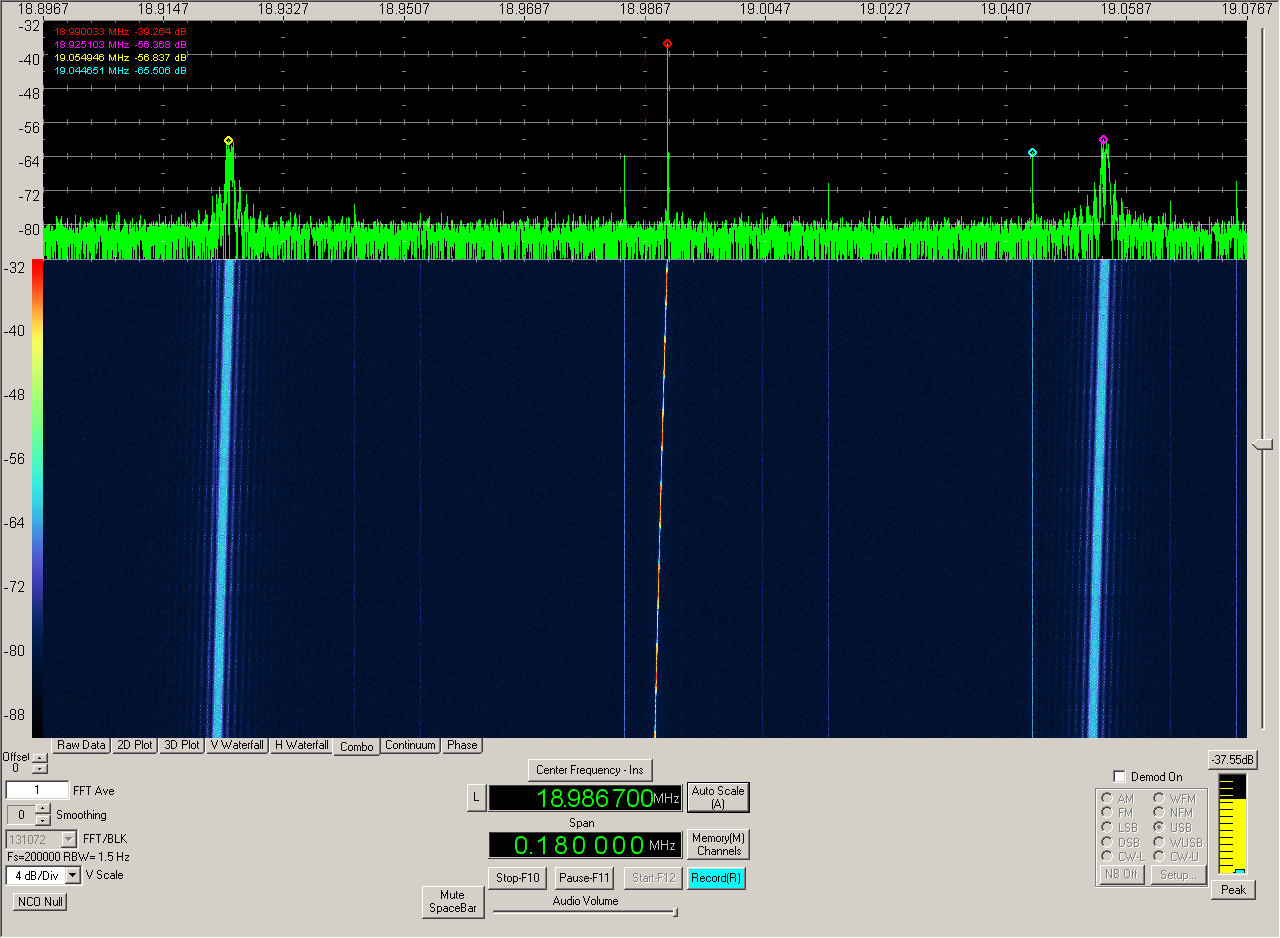

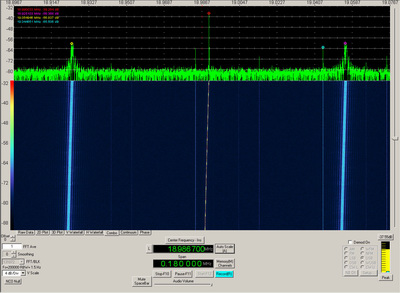

Basic TLM, SC not being commanded

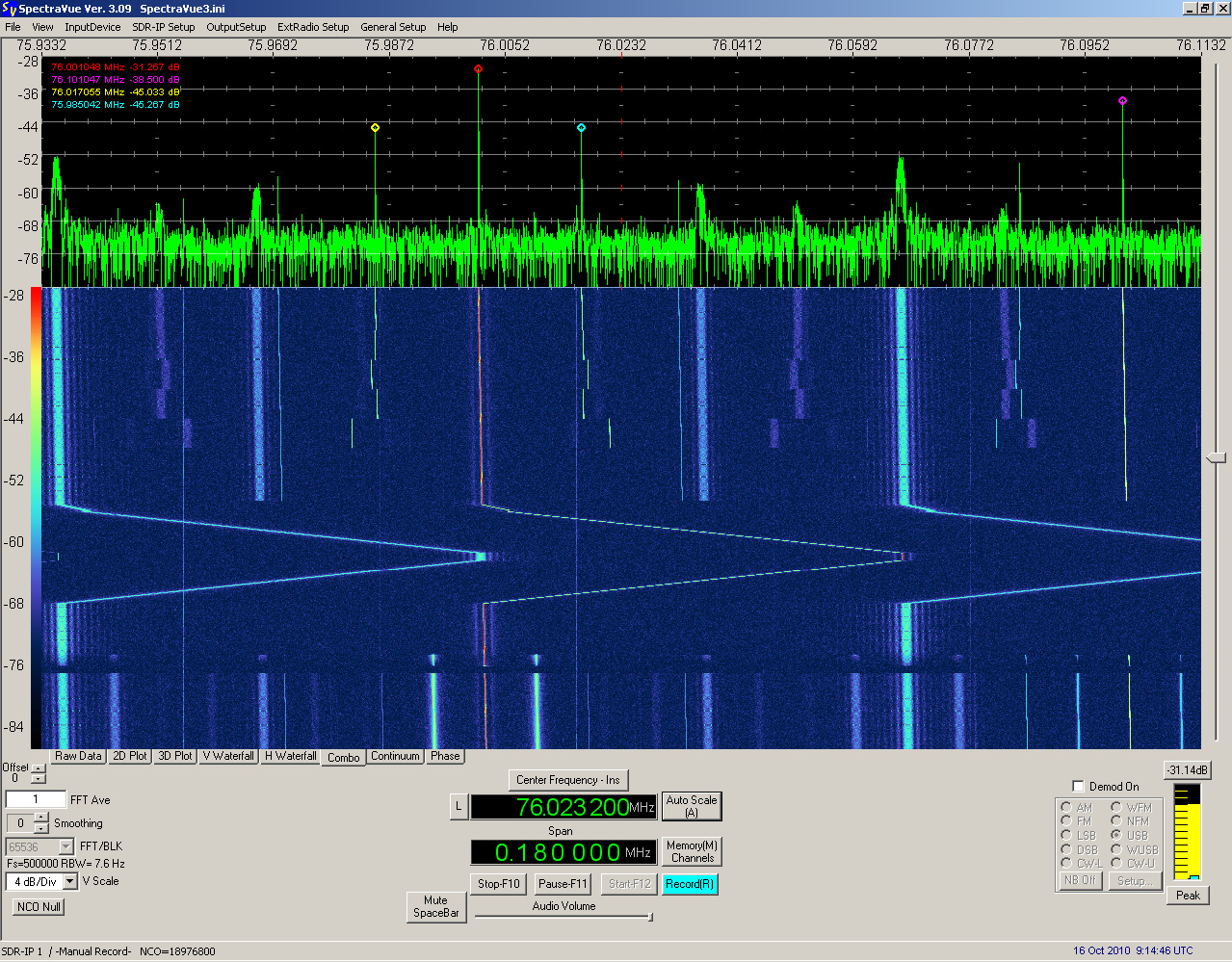

SC sweeps and locks to groundstation


Start of commanding, uplink echo subcarrier appears

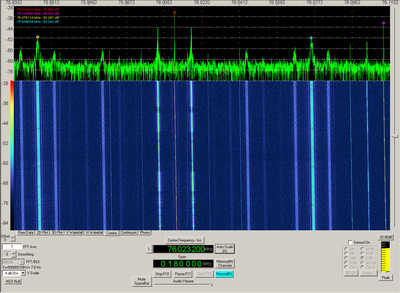

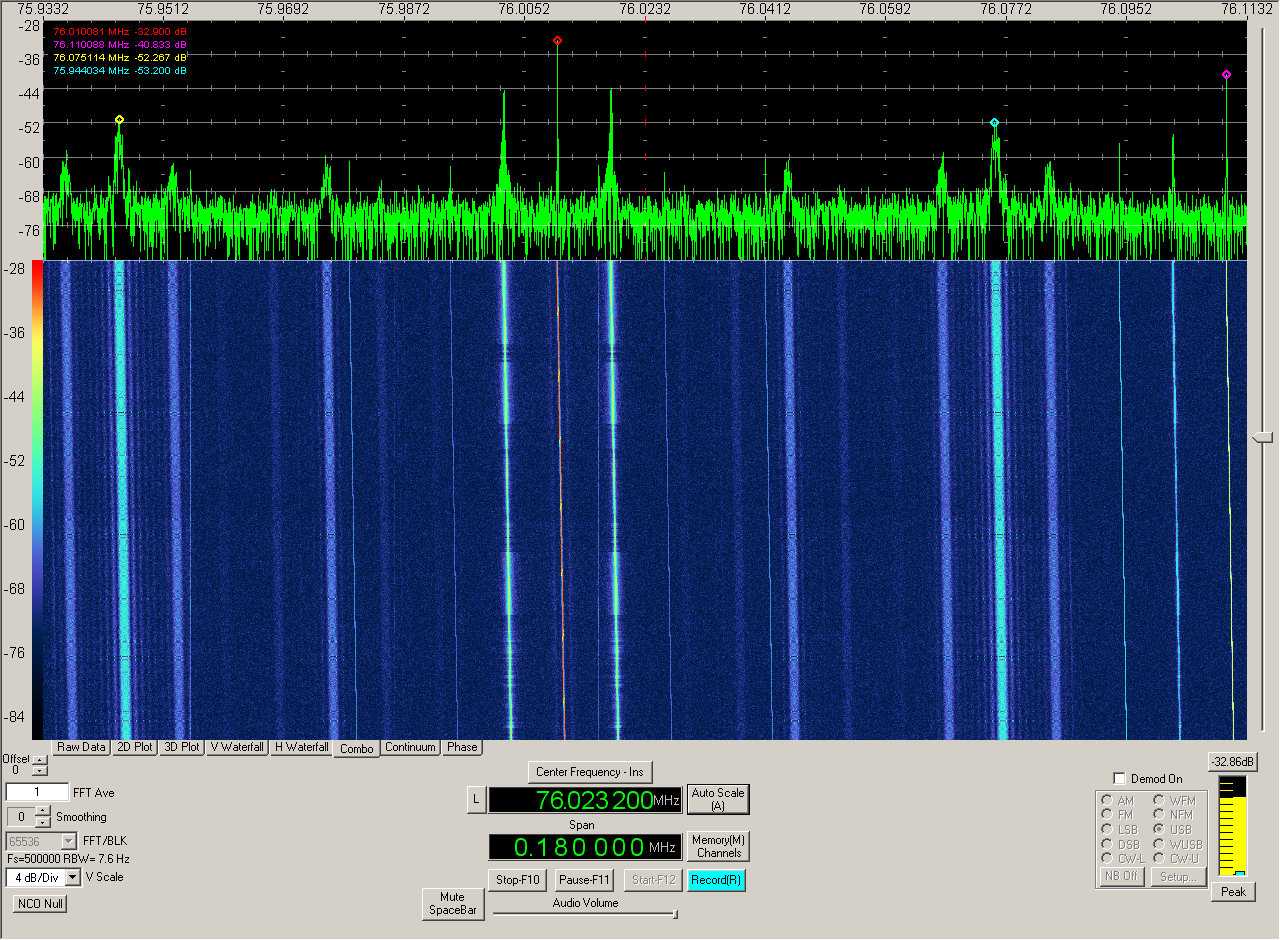

Middle of pass, SC locked to GS, showing all subcarriers

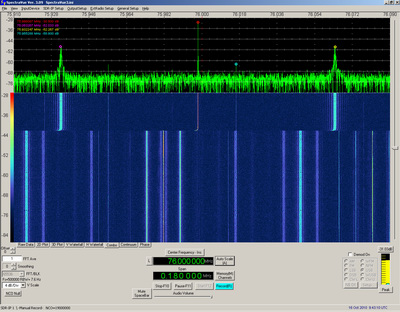

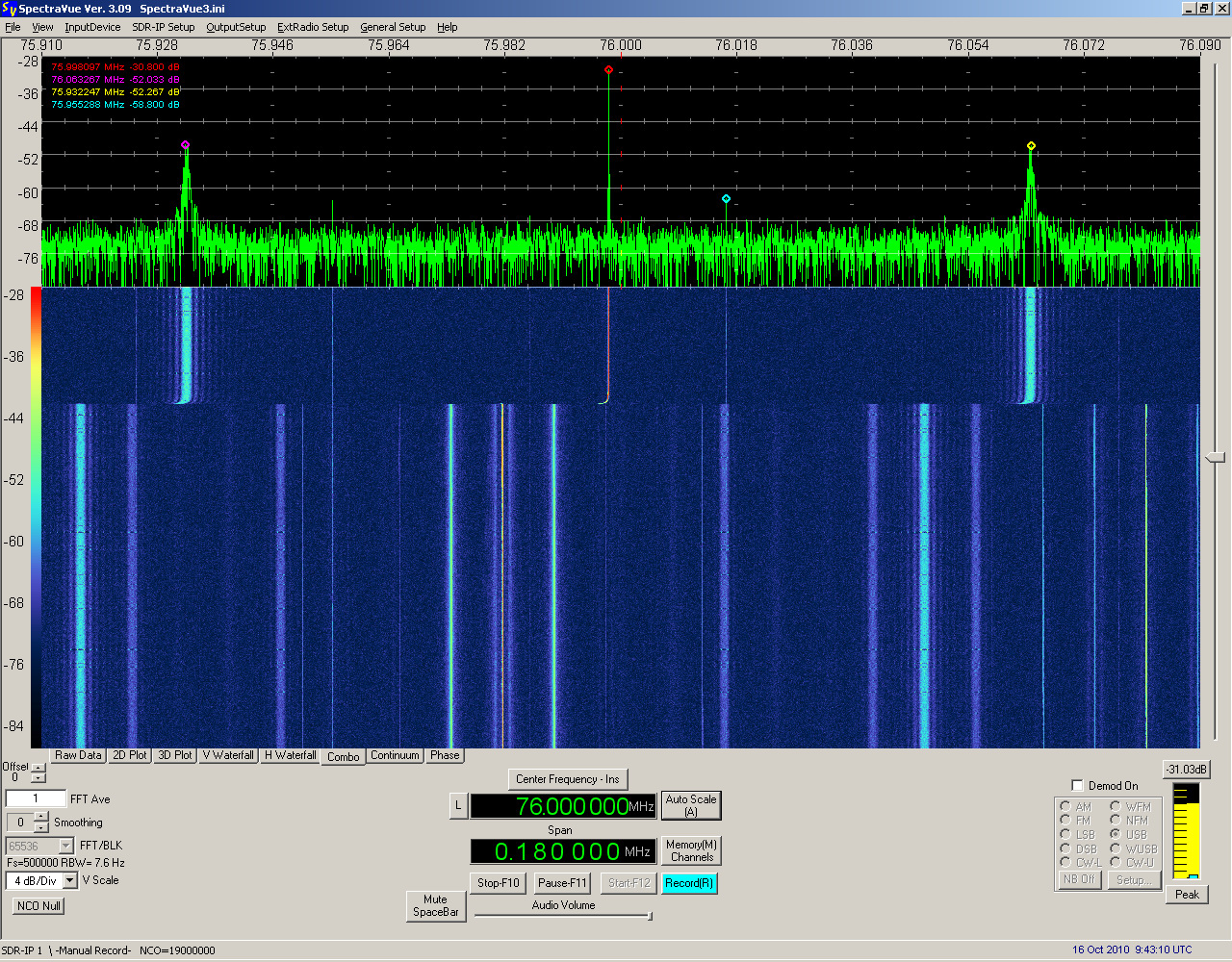

End of visibility from GS, SC unlocks

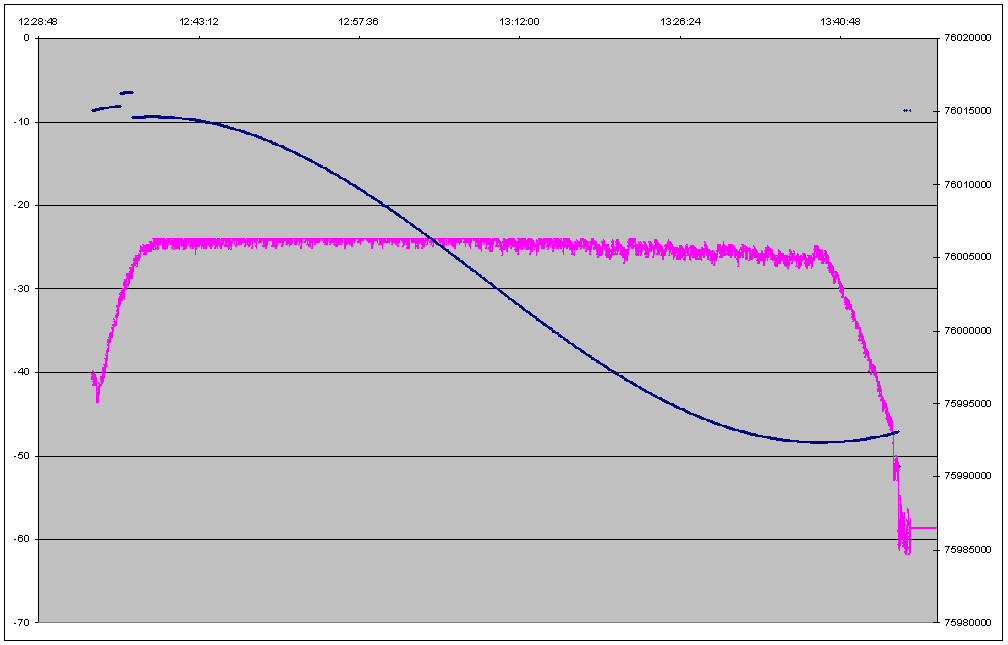

SC doppler and signal level with compensated Moon doppler
