Rocket Lab Electron rocket

Page: Sats.Electron - Last Modified : Tue, 23 Mar 21

Thanks to Felix OK9UWU for a recording of this signal.

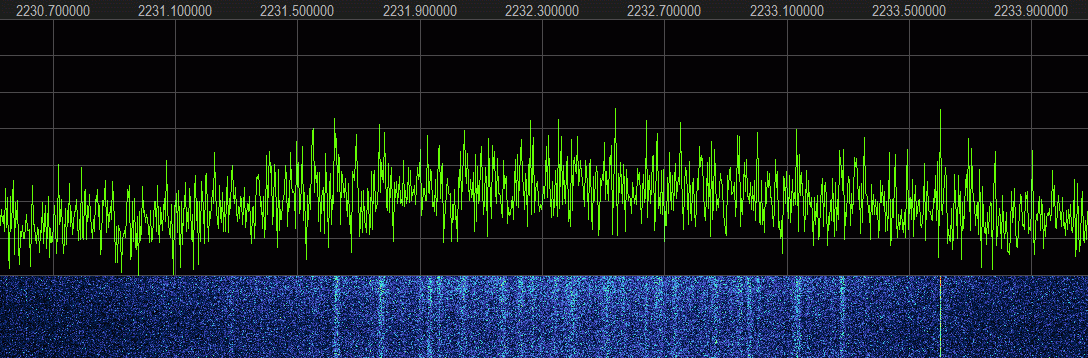

S-band downlink signal spectrum

S-band downlink parameters

Frequency:2232.4525 MHz
Modulation:2560000Bd BPSK
Framing:1280 bit frames

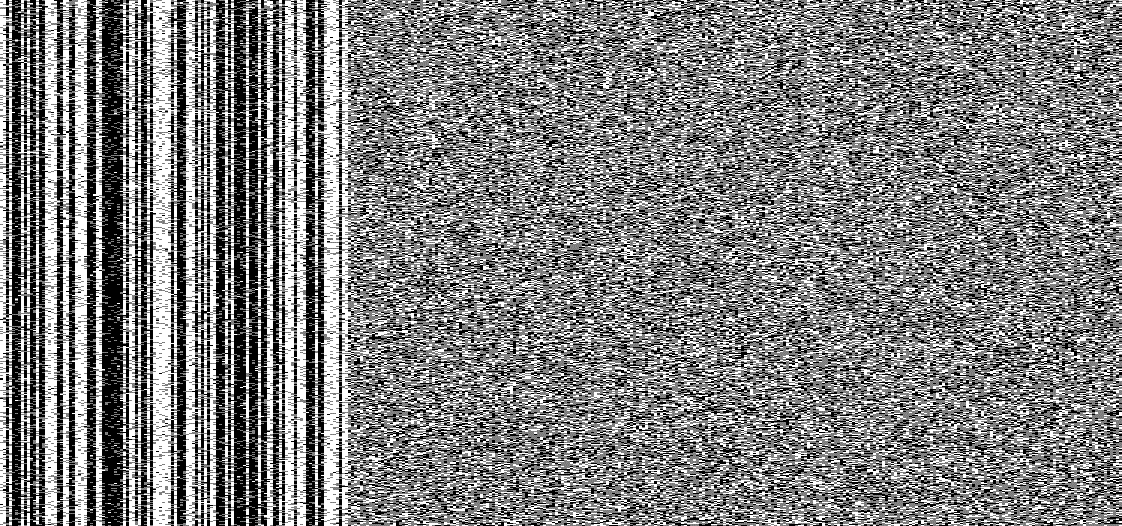

Frame stats with 116 bit long sync pattern followed by what looks like encrypted data:

SYNC pattern at the beginning:
11010001010010011110011001111000110000000101101001011111101000111010101100010100001000100110010111011100010011111011
