SpaceX Starship SN10 signals

Page: Sats.Starship - Last Modified : Tue, 23 Mar 21

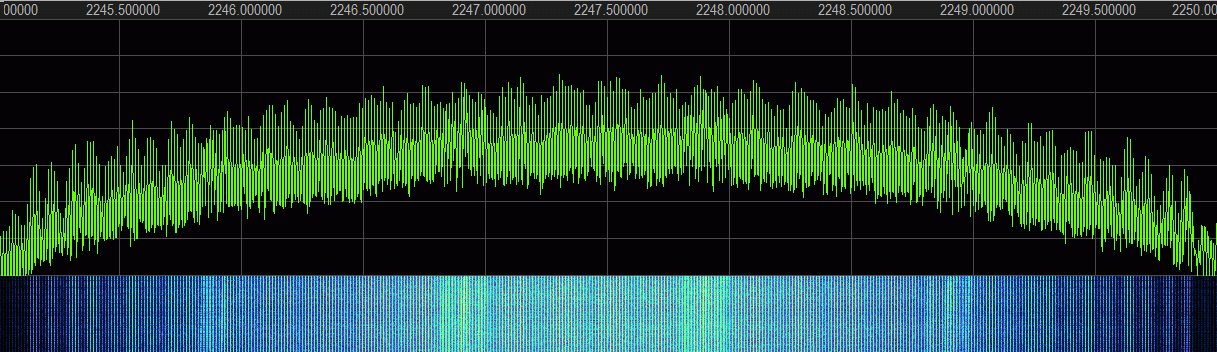

S-band 2211MHz & 2247.5MHz

downlink parameters

Frequency:2211MHz & 2247.5 MHz
Modulation:3125000Bd OQPSK
Framing:10232 bit CCSDS frames
Error correction:5x interleaved RS(255,239), duobinary
Scrambling:standard CCSDS scrambler

Frame format

Same as on Falcon9, for details see Falcon9 page

IPv4 packets

In addition to packets as described on Falcon9 page, Starship also sends raw IPv4 packets. These can be identified by first byte being 0x4x and rest is standard IPv4 packet with UDP payload.

172.19.34.1 -> 239.16.3.1 UDP port 35858 -> 23010  data 604 bytes

List of all IDs

ID bytes         Freq
---------------- ------
0013210101900C08 2211+2247.5
0013210101F50C08 2211
0013210101F60C08 2211
0013210101F70C08 2211
0013210102BD0C08 2211+2247.5
0013210201F50C08 2211+2247.5
0013210201F60C08 2211+2247.5
0013210201F70C08 2211
00132201012D0C08 2211
00132201012E0C08 2211
0013220101900C08 2211
011320A000090504 2211        VARLEN
0113210100620303 2211        VARLEN  ship_fc1a dhcpd+system_housekeeping_monitor
0113210200620303 2211        VARLEN  ship_fc2a dhcpd+system_housekeeping_monitor
0113220100620303 2211        VARLEN  ship_tlm1a system_housekeeping_monitor
0013220101910C08 2211
0013220101F40C08 2211
0013220102580C08 2211
0013220102BC0C08 2211
0013220103200C08 2211
0013220103210C08 2211
0013220103220C08 2211
0113220300620303 2211        VARLEN  ship_tlm3a system_housekeeping_monitor
00132203012D0C08 2211
00132203012E0C08 2211
0113220307D40504 2211+2247.5 VARLEN
0113220307DB0504 2211+2247.5 VARLEN
0013260100000C08 2211
0013260100010C08 2211+2247.5
0113260100081901 2211        VARLEN
00132601000A0C08 2211+2247.5
00132601000B0C08 2211+2247.5
00132601000C0C08 2211+2247.5
00132601000D0C08 2211
00132601000E0C08 2211
00132601000F0C08 2211
0013260100100C08 2211
0013260200000C08 2211+2247.5
0013260200010C08 2211
0113260200081901 2211        VARLEN
00132602000A0C08 2211+2247.5
00132602000B0C08 2211+2247.5
00132602000C0C08 2211+2247.5
00132602000D0C08 2211+2247.5
00132602000E0C08 2211
00132602000F0C08 2211
0013260200100C08 2211
0013260200110C08 2211
0013260200120C08 2211
0013260200130C08 2211
0013260200140C08 2211
0113260204240603 2211+2247.5 VARLEN
0113260204381A01 2211+2247.5 VARLEN
0013260300000C08 2211+2247.5
0013260300010C08 2211
0113260300081901 2211        VARLEN
00132603000A0C08 2211
00132603000B0C08 2211+2247.5
00132603000C0C08 2211+2247.5
00132603000D0C08 2211+2247.5
00132603000E0C08 2211
00132603000F0C08 2211
0013260300100C08 2211
0013260400000C08 2211
0013260400010C08 2211+2247.5
0113260400081901 2211        VARLEN
00132604000A0C08 2211+2247.5
00132604000B0C08 2211
00132604000C0C08 2211
00132604000D0C08 2211+2247.5
00132604000E0C08 2211
00132604000F0C08 2211
0013260400100C08 2211
0013400000650108 2211
0013400001F50108 2211
0013400100650108 2211+2247.5
0013400101F50108 2211+2247.5
0113410100620303 2211        VARLEN  ship_fc1b dhcpd
0013410101F50C08 2211+2247.5
0013410101F60C08 2211+2247.5
0013410101F70C08 2211
0013410102BD0C08 2211+2247.5
0113410200620303 2211        VARLEN  ship_fc2b dhcpd
0013410201F50C08 2211
0013410201F60C08 2211
0113420100620303 2211        VARLEN  ship_tlm1b system_housekeeping_monitor
00134201012D0C08 2211
00134201012E0C08 2211
0113420107D50504 2211+2247.5 VARLEN
0113420107D70504 2211+2247.5 VARLEN
0113420107DC0504 2211+2247.5 VARLEN
0113420107E20504 2211+2247.5 VARLEN
0113420107E30504 2211+2247.5 VARLEN
0113420107E40504 2211+2247.5 VARLEN
00134203012D0C08 2211+2247.5
00134203012E0C08 2211
0113420307D60504 2211+2247.5 VARLEN
0113420307D80504 2211+2247.5 VARLEN
0113420307DD0504 2211+2247.5 VARLEN
0113420307E60504 2211+2247.5 VARLEN
0013460100000C08 2211
0013460100010C08 2211+2247.5
0113460100081901 2211        VARLEN
00134601000A0C08 2211
00134601000B0C08 2211+2247.5
00134601000C0C08 2211+2247.5
00134601000D0C08 2211+2247.5
0013460200000C08 2211+2247.5
0013460200010C08 2211
0113460200081901 2211        VARLEN
00134602000A0C08 2211
00134602000B0C08 2211
00134602000C0C08 2211
00134602000D0C08 2211
00134602000E0C08 2211+2247.5
00134602000F0C08 2211
0013460200100C08 2211+2247.5
0013460200110C08 2211
0013460200120C08 2211+2247.5
0013460200130C08 2211
0013460200140C08 2211
0013460200150C08 2211
0113460204250603 2211        VARLEN
0013460300000C08 2211+2247.5
0013460300010C08 2211
0113460300081901 2211        VARLEN
00134603000A0C08 2211+2247.5
00134603000B0C08 2211
00134603000C0C08 2211
00134603000D0C08 2211+2247.5
00134603000E0C08 2211
0013460400000C08 2211
0013460400010C08 2211+2247.5
0113460400081901 2211        VARLEN
00134604000A0C08 2211
00134604000B0C08 2211+2247.5
00134604000C0C08 2211+2247.5
00134604000D0C08 2211+2247.5
00134604000E0C08 2211+2247.5
0113610100620303 2211        VARLEN  ship_fc1c dhcpd+system_housekeeping_monitor
0013610101F50C08 2211
0013610101F60C08 2211
0013610101F70C08 2211+2247.5
0013610102BD0C08 2211+2247.5
0113610200620303 2211        VARLEN  ship_fc2c dhcpd+system_housekeeping_monitor
0013610201F50C08 2211+2247.5
0013610201F60C08 2211+2247.5
0013610201F70C08 2211
0113620100620303 2211        VARLEN  ship_tlm1c system_housekeeping_monitor
00136201012D0C08 2211+2247.5
00136201012E0C08 2211
0013620101F40C08 2211+2247.5
0013620102BC0C08 2211
0013620103200C08 2211+2247.5
0013620103210C08 2211+2247.5
0013620103220C08 2211+2247.5
0113620300620303 2211        VARLEN  ship_tlm3c system_housekeeping_monitor
00136203012D0C08 2211
00136203012E0C08 2211
0113620307DE0504 2211+2247.5 VARLEN
0113620307DF0504 2211+2247.5 VARLEN
0113620307E10504 2211+2247.5 VARLEN
0113620307E50504 2211        VARLEN
0113620307E70504 2211+2247.5 VARLEN
0013660100000C08 2211
0013660100010C08 2211+2247.5
0113660100081901 2211        VARLEN
00136601000A0C08 2211
00136601000B0C08 2211
00136601000C0C08 2211
00136601000D0C08 2211
00136601000E0C08 2211+2247.5
00136601000F0C08 2211+2247.5
0013660200000C08 2211+2247.5
0013660200010C08 2211
0113660200081901 2211        VARLEN
00136602000A0C08 2211
00136602000B0C08 2211+2247.5
00136602000C0C08 2211
00136602000D0C08 2211
00136602000E0C08 2211
00136602000F0C08 2211+2247.5
0013660200100C08 2211+2247.5
0013660200110C08 2211+2247.5
0013660200120C08 2211+2247.5
0013660200130C08 2211+2247.5
0013660200140C08 2211+2247.5
0013660200150C08 2211+2247.5
0013660300000C08 2211+2247.5
0013660300010C08 2211
0113660300081901 2211        VARLEN
00136603000A0C08 2211+2247.5
00136603000B0C08 2211+2247.5
00136603000C0C08 2211
00136603000D0C08 2211
00136603000E0C08 2211
00136603000F0C08 2211+2247.5
0013660300100C08 2211+2247.5
0013660400000C08 2211
0013660400010C08 2211+2247.5
0113660400081901 2211        VARLEN
00136604000A0C08 2211
00136604000B0C08 2211+2247.5
00136604000C0C08 2211
00136604000D0C08 2211
00136604000F0C08 2211+2247.5
0013660400100C08 2211+2247.5
